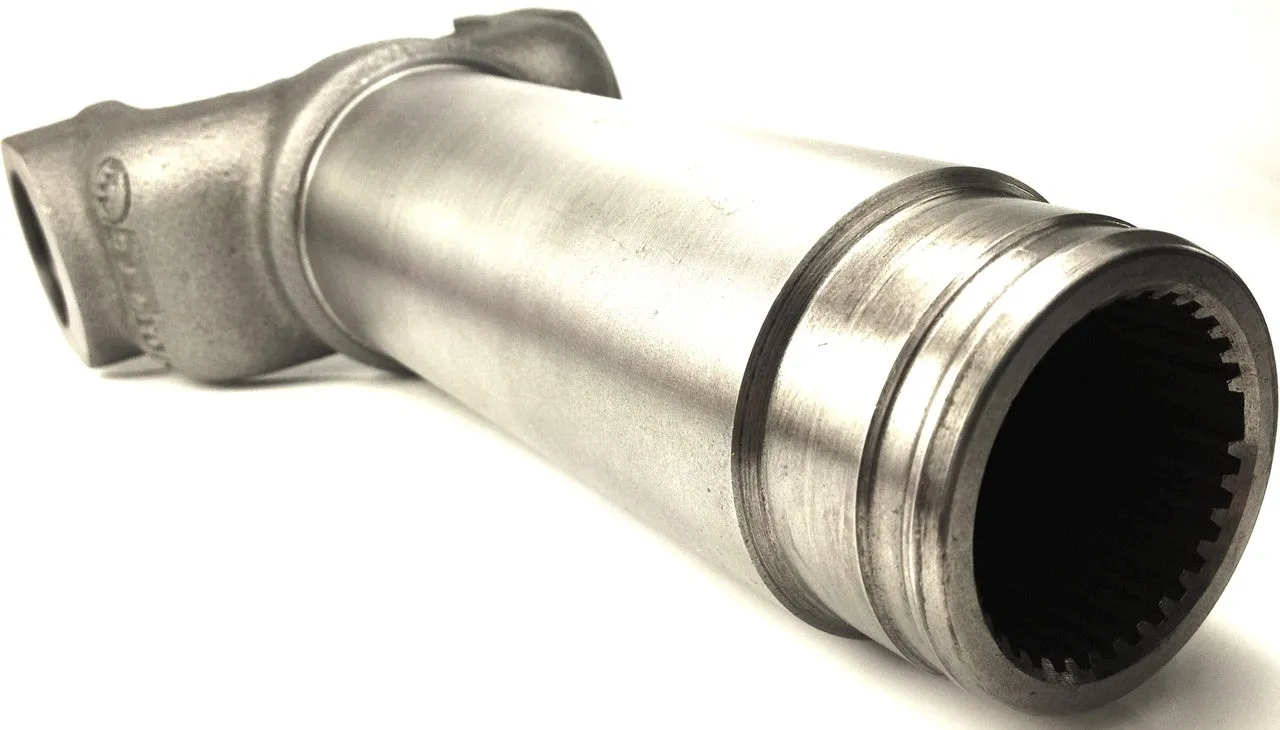

Slip Yoke Assembly - Driveshaft
Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

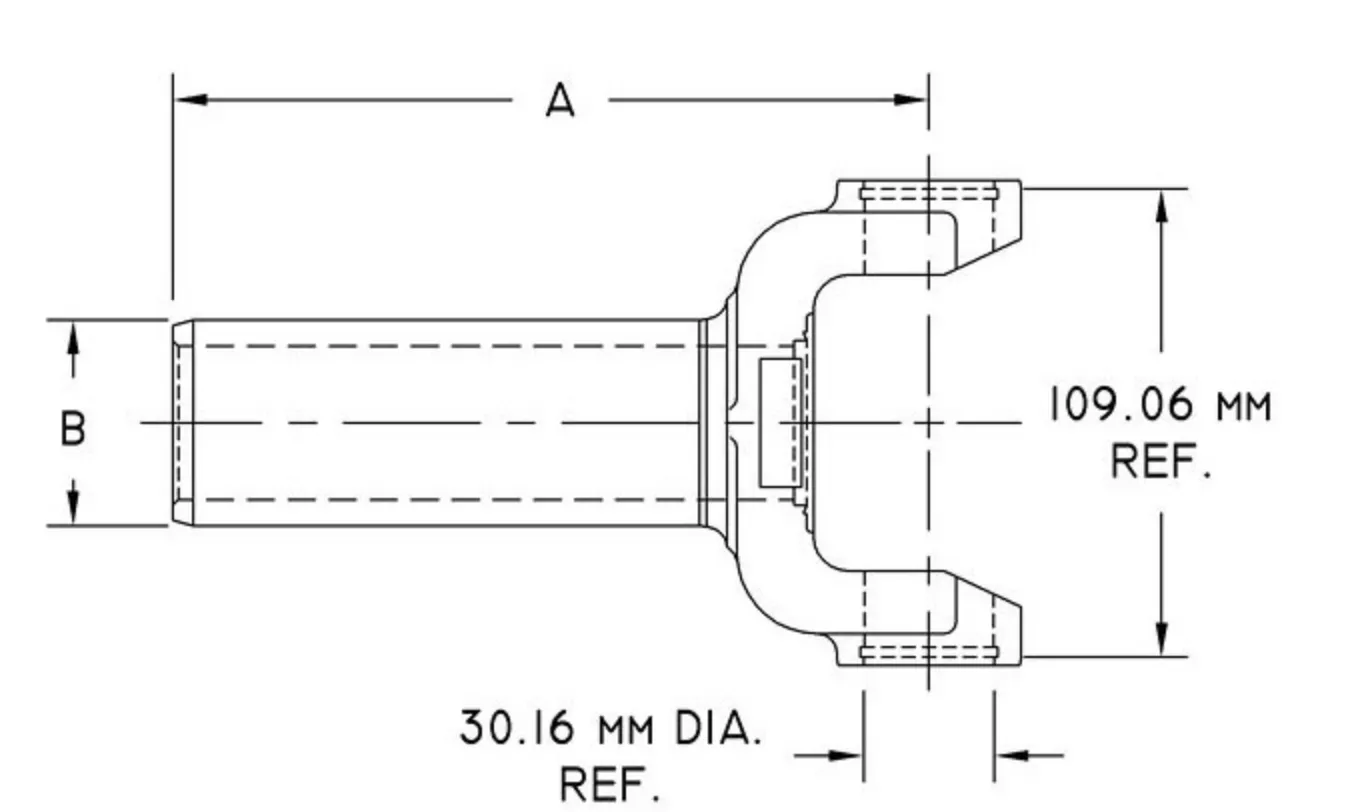

Specifications:
| Series: | 1415 (1410) |
| Outside Yoke Dimension (B): | 4.178 Inch (109.06 mm) |
| Bearing Cap Diameter (A): | 1.188 Inch (30.16 mm) |
| Style: | Outside Snap Ring |
| Center Line To End Of Spline (C): | 7.875 Inch (200 mm) |
| Center Line To Face Of Plug: | 1.375 Inch (34.9 mm) |
| Outside Barrel Diameter (D): | 1.728 Inch (43.90 mm) |
| Spline Outside Diameter (E): | 1.375 Inch (34.9 mm) |
| Number of Splines (F): | 32 (31 with blind spot) |
| Involute: | Yes |
| Material: | Steel |
| Vehicle: | GM |
VMRS: 024002038
Compatible Parts:
AAM U-Joint
PTI 3R18-322 Boot Kit
Alternate Part Number:
PTI Slip Yoke
74084291
